Pangle

Introduction

The purpose of this article is to guide publishers who want to use the DT FairBid SDK to load and display ads from Pangle via DT FairBid Mediation.

This is a seven-step process:

  1. Create or login to your Pangle Account
  2. Create an App in Pangle
  3. Create a Placement for your app in the Pangle dashboard
  4. Retrieve the parameters from the Pangle dashboard
  5. Enable the Pangle network in the DT Console
  6. Add Pangle Instances for the relevant Placements in the DT Console
  7. Add the Pangle SDK to your integration

Note

Pangle currently supports the following ad formats:

  • Interstitials
  • Rewarded Videos
  • Banners

Refer to Pangle for updates on supported ad formats.

Step 1: Create or log in to your Pangle Account

Click here, to create your Pangle account.

Step 2: Create an App in Pangle

Click here and follow the instructions to set-up your app in Pangle.

Step 3: Create a Placement for your App in the Pangle Dashboard

Click here and follow the instructions to create a placement for your app.

Step 4: Retrieve Parameters from the Pangle Dashboard

To enable Pangle to work as an Ad Network on the DT FairBid Mediation platform, you must obtain a total of five parameters from your Pangle account and later insert them into the DT Console.

Set out below are the details of what parameters are required, how and where to obtain them.

Pangle Parameter Description
App ID The unique identifier of the app in Pangle's system
Ad Placement ID The unique identifier of the Placement in Pangle's system
API Key Used for the Reporting API
Role ID
User ID

Alternatively, watch and listen to the video below to find out how to obtain the required parameters:

Retrieving the App ID

To obtain the Pangle App ID, follow these steps:

  1. Go to the Pangle dashboard
  2. On the left-side menu, click Applications

  3. The list of Apps is displayed and the App ID is shown.

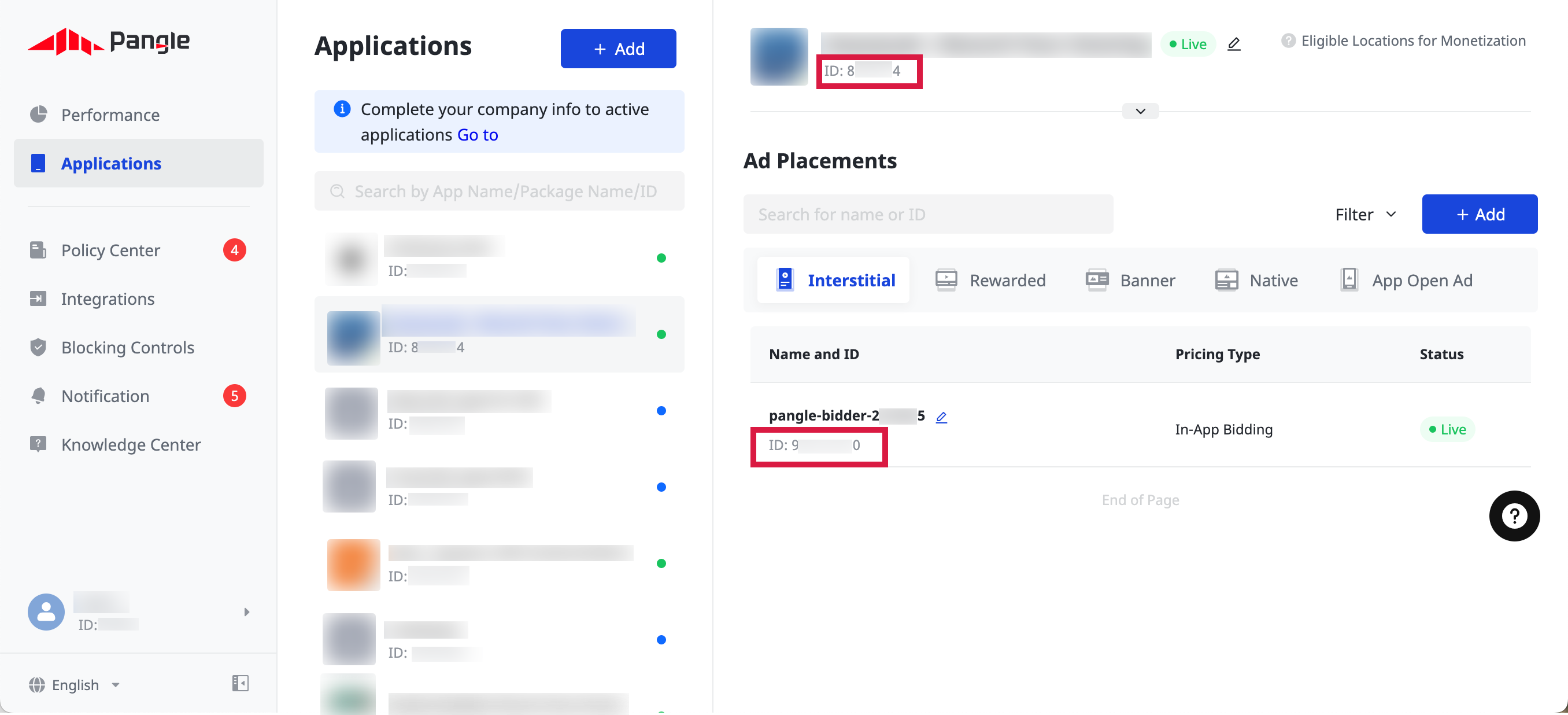

Retrieving the Placement ID

To obtain the Placement ID, follow these steps:

  1. Go to the Pangle dashboard
  2. On the left-side menu, click Applications and select the relevant App

  3. The list of Ad Placements is displayed and the Ad Placement ID is shown.

Retrieving the API Key & Role ID

Follow these steps to retrieve the API Key and the Role ID from the Pangle dashboard:

  1. Go to the Pangle dashboard
  2. On the left-side menu, click Integrations

  3. Under SDK & API, select Pangle Reporting API

  4. The API Key and Role ID are displayed.

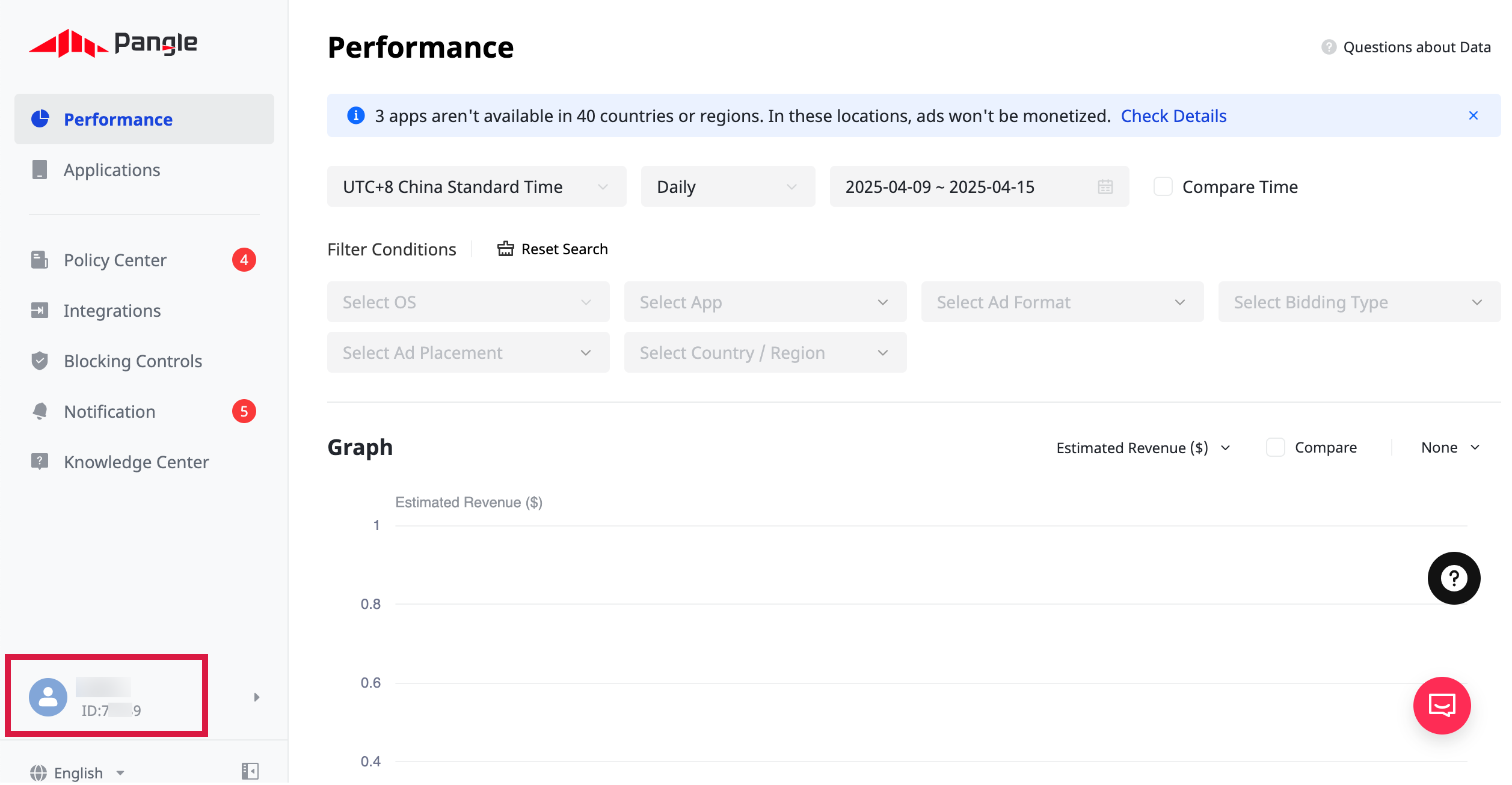

Retrieving the User ID

The User ID is displayed on the bottom left corner of the Pangle dashboard.

Now that you have obtained the required parameters, you can complete the configuration of Pangle in your DT Account.

Step 5: Insert the Pangle Parameters into the DT Console

To enter the parameters obtained from Pangle and insert them into the DT Console, follow these steps.

  1. Sign-in to your DT account.
  2. Select your app from the App Management window.

  1. On the App Management page, click Mediated Networks.

  1. Select Pangle from the list

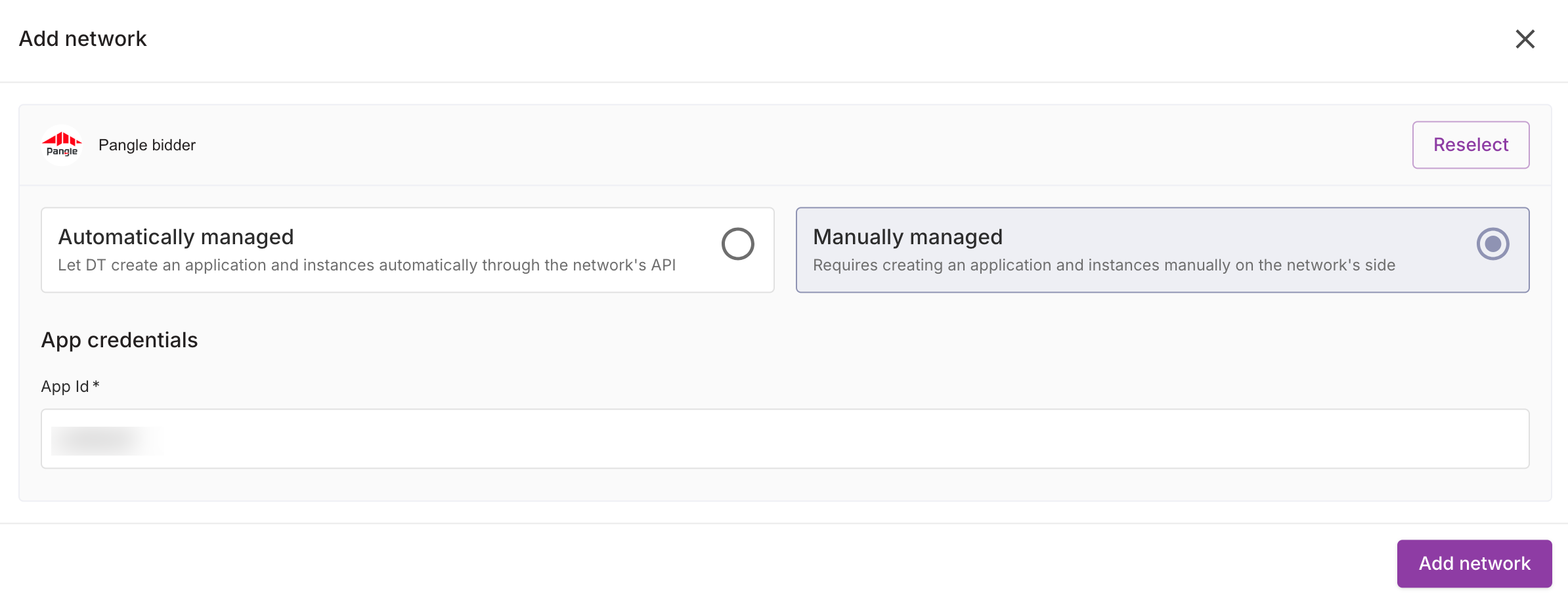

The Pangle configuration window opens:

  1. Enter the Pangle credentials and set the Instance name (Instance name should be distinguishable in case you have multiple Instances).
  2. Click Save.

Step 6: Adding Pangle Instances for the relevant Placements in the DT Console

To complete the set up, you must associate the Placement you just created on the Pangle dashboard to a Placement in the DT Console.

Click here for further details on how to add the new Pangle Instances for the relevant Placement.

Step 7: Adding the Pangle SDK to your Integration

To add the Pangle SDK go to the Supported Networks page and follow the guide while selecting the Configuration for Pangle.

ProGuard

For ProGuard users only, follow the instructions here under the ProGuard Configuration section.

You have now successfully integrated Pangle into the console.

SDK Bidding

Pangle Bidding is currently part of a closed beta test. Please contact your DT or Pangle Account Manager first to integrate Pangle bidder.

Pangle Bidding support is available starting from DT FairBid SDK 3.23 and later versions.
